Our multi–award-winning and Emmy®-nominated private 5G solutions have proved themselves in a range of significant high-profile deployments in recent years. While we specialise in the pop-up 5G network space, we also have equipment suited to permanent indoor or outdoor deployment, multi-cell, and enterprise use cases.
We recently refreshed our product line up, bringing to market our latest-generation NW Etive radio and a new portable server NW Nessie, to make our turnkey solution even easier to deploy. We are also launching three new affordable product tiers. The main building blocks of our P5G systems are high-performance custom-built servers, cutting-edge AMD RFSoC-based Software Defined Radio, and accessories including antennas, tactical fibre reels and transport cases where required. The servers run real-time gNB software stacks, currently aligned with 3GPP Rel18, and are managed using our innovative nibOS software.
Explore our Private 5G Components

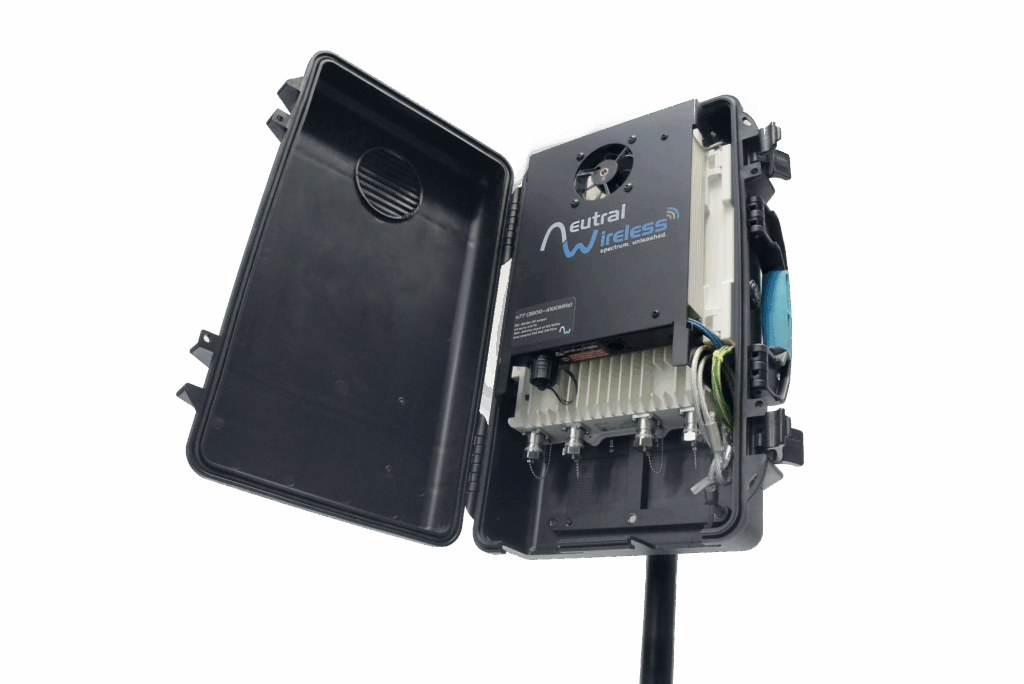

NW Etive Radio
Our latest generation “NW Etive” is a high-performance 4TRx software-defined radio head, optimised for simplicity of deployment. The NW Etive hardcase can be directly pole-mounted along with your choice of antenna to minimise RF cabling losses. Powered by AMD RFSoC technology, the NW Etive can be operated in MIMO (2×2 or 4×4) configurations with bandwidths of up to 100 MHz.
Available frequency bands: n40, n77, n78 (others available upon request)
Hardcase Dimensions: 540 x 350 x 135 mm (14.5 kg)

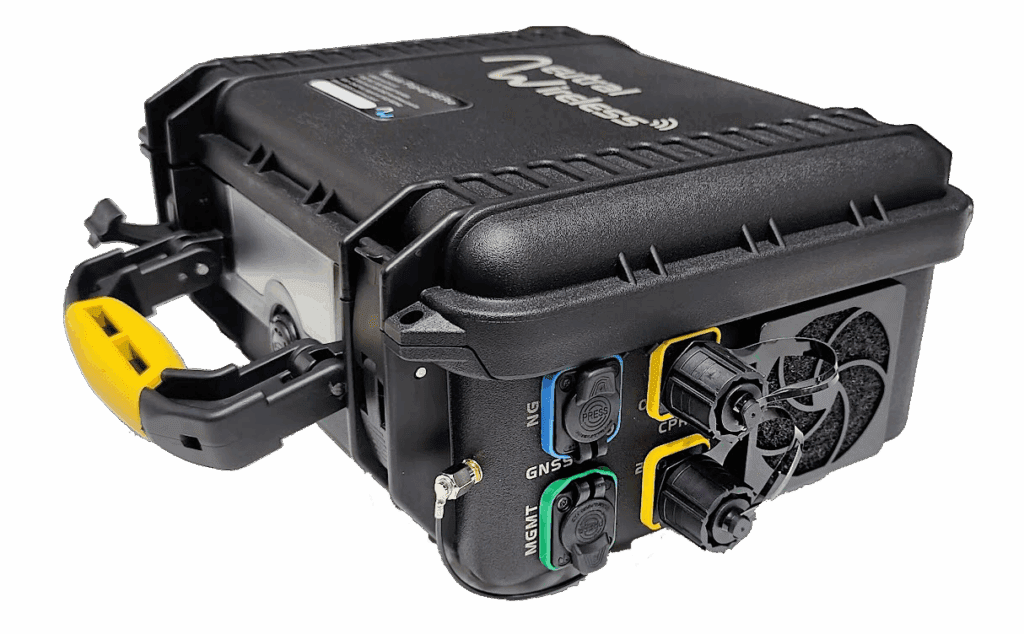

NW Nessie Portable Server (vRAN + 5GC)
Neutral Wireless’ Nessie is our latest server platform. We have repackaged our trusted high performance 1U system into a custom chassis, and fitted this in a connectorised hardcase. This server is designed to run our vRAN gNB stack, our nibOS configuration and KPI tool, and our (optional) 5G Core. The rugged case is splashproof (light rain proof), and the full assembly is impressively lightweight!
For dark fibre fronthaul between the server and the radio, we typically supply tactical fibre reels with locking connectors; however we can also support opticalCON or SMPTE311M interfaces for customers that wish to utilise existing cable stock.
Max Config DL Bias: 800MHz aggregate bandwidth
Max Config UL Bias: 600MHz aggregate bandwidth
Max Config Low Latency: 600MHz aggregate bandwidth
Hardcase Dimensions: 330 x 305 x 155 mm (5.1 kg)
We will of course continue to offer our rack server form factor for customers that request it.
Rack Server Dimensions: 1U 370 mm depth (12 kg)
NW nibOS Configuration and KPI Dashboards
Neutral Wireless’ nibOS network administration software provides our customers with an accessible and intuitive interface for configuring and monitoring network performance. Bundled with a comprehensive user manual and quick-start guide, nibOS gives you the power and the confidence to fine-tune your network to suit your particular use case, and to meet the parameters of your spectrum licence.
nibOS features an integrated KPI dashboard with at-a-glance real-time health and performance monitoring and historical per-UE network performance data capture. Invaluable during live deployments, our operational dashboard allows our customers to monitor the performance of their 5G devices (such as video encoders or handsets) through metrics such as data throughput, channel quality, network status, path loss, and more. This dashboard has been used in the operations centres of large events, including the King’s Coronation and the Paris2024 Opening Ceremony.
Product Tiers
We offer three main product tiers:
Pop-up 5G
Single cell pop-up network
max 1W / 30dBm Tx
Base package includes:
- n77/ n78/ n40 Etive radio in pole- mountable case
- Antenna with case
- Accessories kit
- Nessie portable gNB server
- Basic gNB config via nibOS
- Basic live gNB KPI dashboard
Optional addons include:
- 5GC, SIM cards (5GC addon includes basic 5GC KPI dashboard)
- Additional gNB config options
Pop-up 5G Pro
Multi cell pop-up network
(no power limitation)
Base package includes all the features from Pop-up 5G, plus:
- Full gNB config options via nibOS
- Full gNB KPI dashboard, presenting realtime and historic data
- Option to run two cells from Nessie, and connect multiple Nessies together for large scale networks
Optional addons include:
- Additional Etive radio/ antenna/ accessories kits
- 5GC, SIM cards (5GC addon includes full 5GC KPI dashboard, and realtime and historic UE KPIs
Enterprise 5G
Bespoke networks.
Designed by us.
Our enterprise 5G solutions can be tailored exactly to your use case requirements:
- Portable or pole-mount solutions
- Radios covering various bands
- Greater choice of antennas
- Range of software licencing options
Optional addons include:
- 5GC, SIM cards (5GC addon includes full 5GC KPI dashboard, and realtime and historic UE KPIs)
- Integration with 3rd party core APIs, to enable 5GC and realtime UE KPIs
More information on each of these tiers is provided further down the page. To help you choose the perfect private 5G solution, you can use the decision tree below:
Pop-up 5G

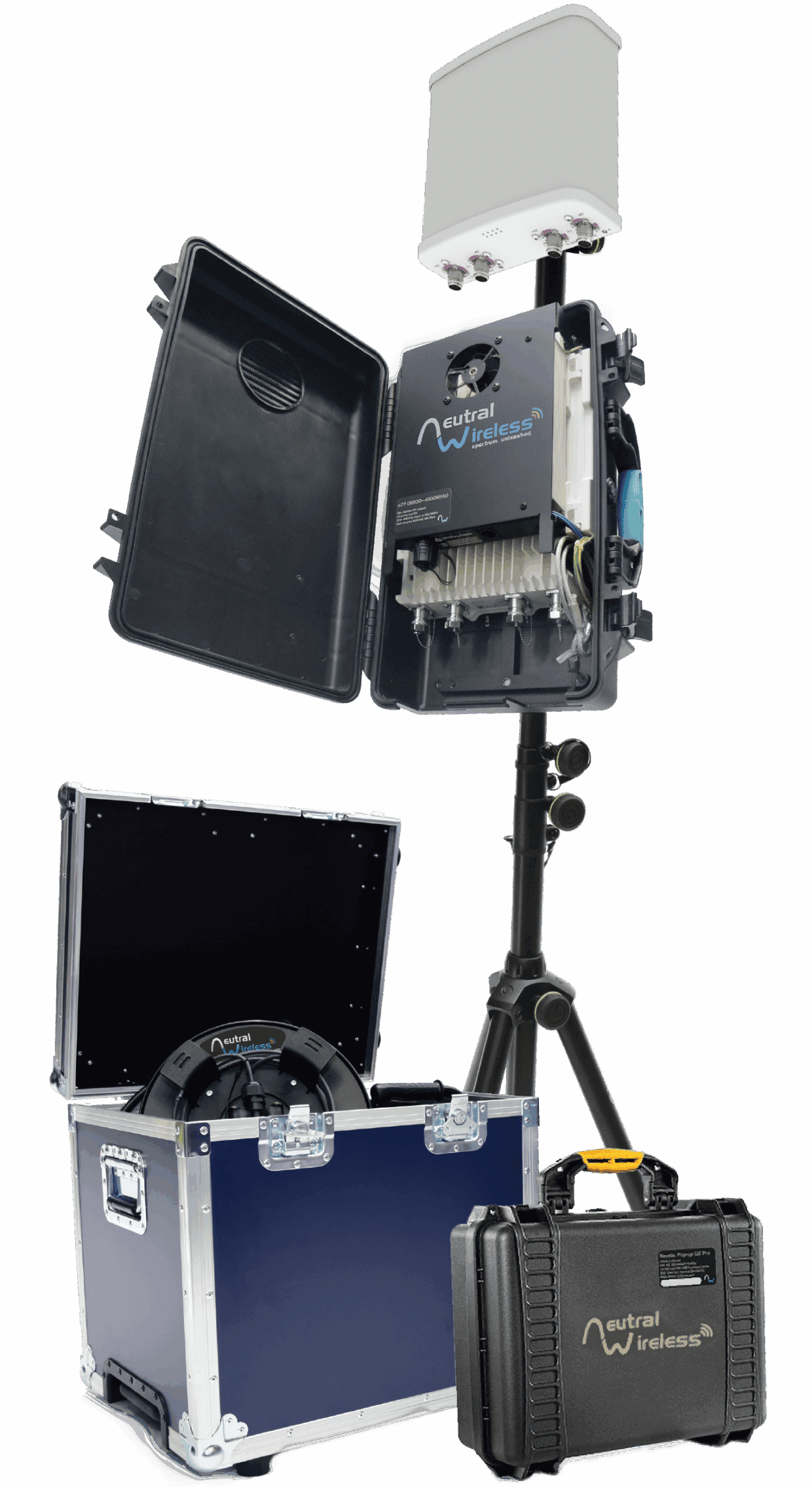

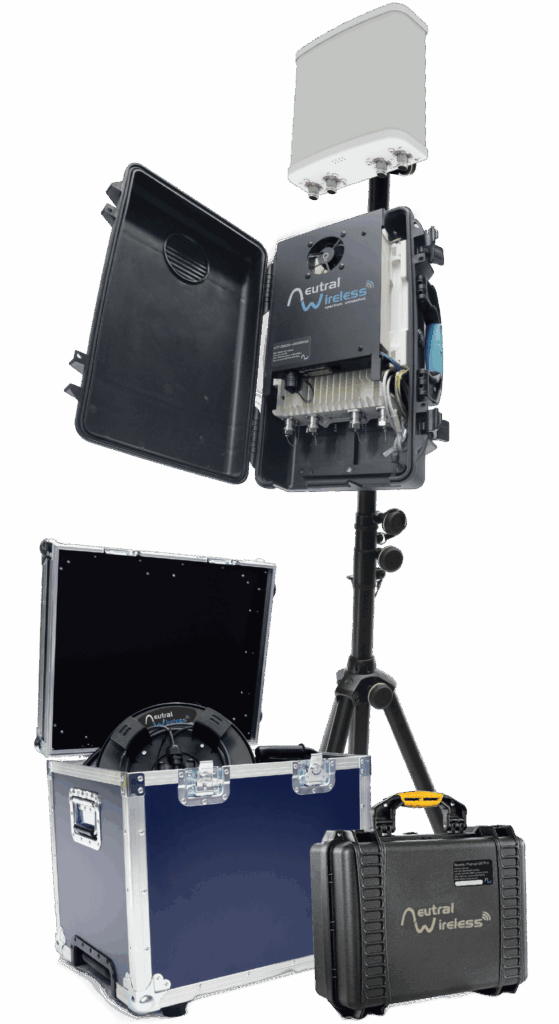

Pop-up 5G is your entry level solution to the private 5G world. This package includes all of the radio equipment and accessories required to deploy a 5G cell. This package includes:
- x1 Etive radio in pole-mountable case, your choice of:
- n77 (3800-4100 MHz) 4 port 25-33 dBm
- n78 (3400-3800 MHz) 4 port 25-37 dBm
- n40 (2300-2400 MHz) 4 port 25-37 dBm
- x1 Antenna 4 port featuring rapid mount tripod clamps and a transport case, your choice of:
- 12 dBi sector antenna
- 8 dBi omni antenna
- x1 Pop-Up accessories kit including:
- 150m singlemode tactical fibre reel for fronthaul connection
- 25m power cable and protection equipment for radio
- booted RF jumpers
- earth bonding kit
- x1 Nessie portable gNB server with:
- vRANlite stack licenced for single 2×2 cell with max 30 dBm transmit power (FUTURE UPGRADEALBE to full ‘Pop-up 5G Pro’ with vRAN multicell) [note – while the licence permits max of 2×2 cell configuration, it is possible to enable Rx diversity over all four receive ports, or split Tx and Rx to enable use of Tx attenuators where spectrum licence requires it]
- nibOS network KPI and management software (licenced for basic gNB config and basic live gNB KPI dashboard)
- 10G RJ45 NG and MGMT interfaces
- 5m tethered GNSS antenna and bracket
Addons to the Pop-up 5G package include:
- 5G core, loaded onto your Nessie server (this addon includes a basic 5GC KPI dashboard for nibOS)
- Packs of x10 SIM cards (standard/ micro/ nano)
- Additional gNB configuration options for nibOS
Pop-up 5G Pro
Take your pop-up networks to the next level with our Pop-up 5G Pro package. The base package includes all the features from Pop-up 5G, *plus some important extras*:
- x1 Etive radio in pole-mountable case, your choice of:
- n77 (3800-4100 MHz) 4 port 25-33 dBm
- n78 (3400-3800 MHz) 4 port 25-37 dBm
- n40 (2300-2400 MHz) 4 port 25-37 dBm
- x1 Antenna 4 port featuring rapid mount tripod clamps and a transport case, your choice of:
- 12 dBi sector antenna
- 8 dBi omni antenna
- x1 Pop-Up accessories kit including:
- 150m singlemode tactical fibre reel for fronthaul connection
- 25m power cable and protection equipment for radio
- booted RF jumpers
- earth bonding kit
- x1 Nessie portable gNB server with:
- *vRAN multi-cell stack suitable for two cells, with no power or MIMO limitations*

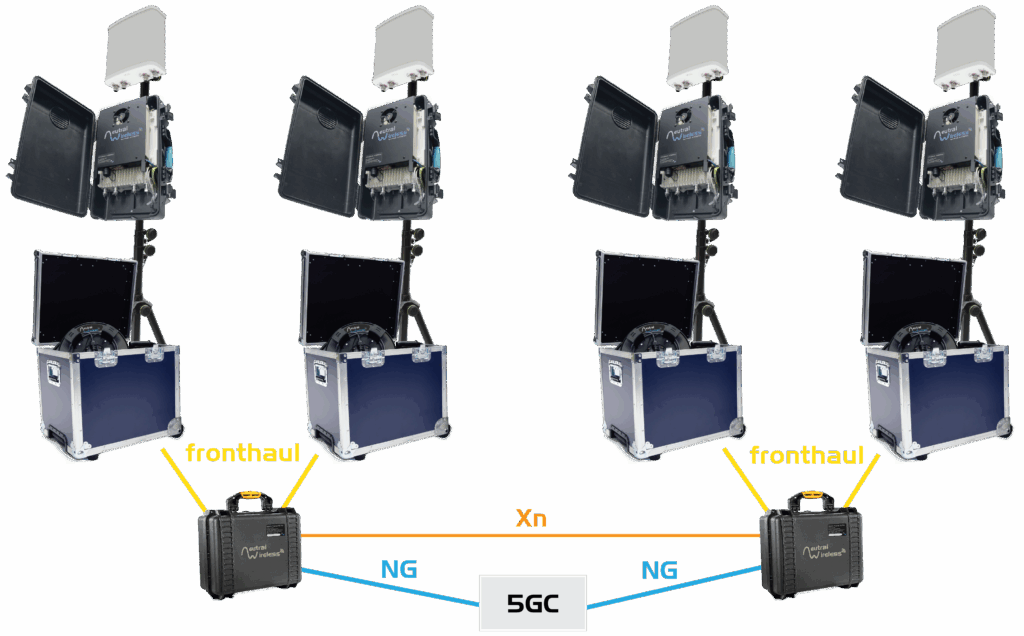

- *Option to run two cells from Nessie, and connect multiple Nessies together for multi-cell and multi-gNB networks*
- nibOS network KPI and management software *(licenced for full gNB config and full realtime and historic gNB KPI dashboard)*
- 10G RJ45 NG and MGMT interfaces
- 5m tethered GNSS antenna and bracket
Addons to the Pop-up 5G Pro package include:
- *Additional Etive/ antenna and accessories kit, enabling a two cell deployment*
- 5G core, loaded onto your Nessie server (this addon includes a basic 5GC KPI dashboard for nibOS)
- Packs of x10 SIM cards (standard/ micro/ nano)
- Additional gNB configuration options for nibOS
With multiple addon sets to Pop-up 5G Pro, you can easily develop large and flexible inventories of equipment that will allow you to tackle events where there are large geographical coverage requirements.
Enterprise 5G
Neutral Wireless have a strong history of designing and deploying bespoke P5G networks across a range of sectors. From rural outdoor macro cell 5G broadband to small cell indoor 5G connectivity deployments in studios and factories, we have solutions for every use case:
- Portable or permanent pole-mount systems
- Radios covering various bands
- Greater choice of antennas
- Range of software licencing options
- 5GC, SIM cards (5GC addon includes full 5GC KPI dashboard, and realtime and historic UE KPIs)
- Integration with 3rd party core APIs, to enable 5GC and realtime UE KPIs
One of the key services we offer with this package is network design coverage simulations. If you present us with a target coverage area, capacity requirements, and information about power and backhaul facilities nearby, we can create efficient and cost optimised designs that will provide the service level your use case requires. Following network design, we can perform site surveys and ambient spectrum measurements to confirm RF channel conditions, and ultimately make recommendations about the most suitable NW hardware for your deployment.
The deployment can be carried out by your existing trusted installers, with NW able to provide on-the-ground support and training. In certain circumstances, NW is also able to offer ‘5G event as a service’, where we will deploy and manage the equipment for the duration required.
What is a Private 5G Network?
Private 5G networks — or non-public-networks (NPN), as they are sometimes known — are dedicated mobile/wireless networks that can provide coverage in a specific area for a number of devices. All user equipment (UE) connected to a private network is securely authenticated with network-specific SIM cards, providing a strong layer of inherent security at the outset. At Neutral Wireless, our portable, pop-up private networks can provide connectivity for high resolution cameras, microphones, compute platforms, Industry 4.0 style sensors, handsets, and more.
Interest in private networks has rocketed in the past few years, with the advent of shared-spectrum type agreements (such as Ofcom’s shared-access n77-band licences in the UK, or CBRS in the USA) broadening the scope for private network deployments across the world, and across a variety of industries.
Neutral Wireless has a proven track record of designing, deploying, and consulting on private networks for a wide range of use cases.
Want your own private network? Have any other questions?
